Name: Crosswalk

Display Field: MarkIDtxt

Type: Feature Layer

Geometry Type: esriGeometryPolyline

Description: The Rdwy_MARKINGS feature class models the location and attribution of traffic markings within the Town of Castle Rock. The field attribution stores data pertinent to Public Works maintenance operations, and primarily describe the function, type, owner, custodian and construction of each feature.

Copyright Text: Source aerial imagery collected as part of the Denver Regional Aerial Photography Project (DRAPP) coordinated by the Denver Regional Council of Governments (DRCOG). All record drawings used as source material are created by the respective developer, and were delivered per the Public Works Department requirements for development projects.

Default Visibility: true

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 30000

Max Scale: 0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: -118767900
YMin: -94525500
XMax: 4016361.912284225
YMax: 2601398.9311810583
Spatial Reference: 102654  (2232)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSLSSolid
Color: [0, 0, 0, 255]
Width: 8
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: Mark_SType

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• Marking_ID ( type: esriFieldTypeSmallInteger, alias: Marking ID )
• MarkIDtxt ( type: esriFieldTypeString, alias: Marking ID (txt), length: 50 )
• Mark_SType ( type: esriFieldTypeSmallInteger, alias: Marking Classification )
• Mark_Type ( type: esriFieldTypeString, alias: Marking Type, length: 50 , Coded Values: [Bicycle Lane: Bicycle Lane] , [Bike Arrow: Bike Arrow] , [Bike Sharrow: Bike Sharrow] , ...46 more... )
• Location ( type: esriFieldTypeString, alias: Location, length: 50 )
• Material ( type: esriFieldTypeString, alias: Material, length: 50 , Coded Values: [Acrylic Latex Polymer: Acrylic Latex Polymer] , [Inlay Contrast Tape: Inlay Contrast Tape] , [Methyl Methacrylate Polymer: Methyl Methacrylate Polymer] , ...1 more... )
• Color ( type: esriFieldTypeString, alias: Color, length: 30 , Coded Values: [Blue / White: Blue - White] , [Red: Red] , [Red / White / Blue: Red - White - Blue] , ...2 more... )
• MrkLen_ft ( type: esriFieldTypeDouble, alias: Marking Length (ft) )
• MrkWD ( type: esriFieldTypeDouble, alias: Marking Width (in) )
• MrkCount ( type: esriFieldTypeSmallInteger, alias: Total Reflectors )
• Area_sqft ( type: esriFieldTypeDouble, alias: Area (sqft) )
• CreateUser ( type: esriFieldTypeString, alias: Data Creator, length: 255 )
• Create_Dt ( type: esriFieldTypeDate, alias: Created Date, length: 8 )
• Edit_User ( type: esriFieldTypeString, alias: Last Editor, length: 255 )
• Edit_Dt ( type: esriFieldTypeDate, alias: Edit Date, length: 8 )
• Needs_Review ( type: esriFieldTypeString, alias: Needs Review, length: 5 , Coded Values: [Yes: Yes] , [No: No] )
• Notes ( type: esriFieldTypeString, alias: Notes, length: 125 )
• Func_Class ( type: esriFieldTypeString, alias: Functional Class, length: 30 , Coded Values: [Industrial: Industrial] , [Major Collector: Major Collector] , [Minor Arterial: Minor Arterial] , ...8 more... )
• Criticality_Factor ( type: esriFieldTypeSmallInteger, alias: Criticality Factor )
• Maint_Prgrm ( type: esriFieldTypeString, alias: PMP Program, length: 25 , Coded Values: [PMP Central Region: PMP Central Region] , [PMP East Region: PMP East Region] , [PMP North Region: PMP North Region] , ...6 more... )
• Carte_Replaced ( type: esriFieldTypeDate, alias: Cartegraph Replaced, length: 8 )
• Estimated_Replacement_Date ( type: esriFieldTypeDate, alias: Estimated Replacement Date, length: 8 )
• Age ( type: esriFieldTypeSmallInteger, alias: Age )
• Remaining_Life_Yrs ( type: esriFieldTypeSmallInteger, alias: Remaining Life (Yrs) )
• Carte_Install ( type: esriFieldTypeDate, alias: Cartegraph Install, length: 8 )
• Carte_Retired ( type: esriFieldTypeDate, alias: Cartegraph Retired, length: 8 )
• Signalized_Intersection ( type: esriFieldTypeString, alias: Signalized Intersection, length: 5 )
• Shape ( type: esriFieldTypeGeometry, alias: Shape )
• Roundabout ( type: esriFieldTypeString, alias: Roundabout, length: 5 , Coded Values: [No: No] , [Yes: Yes] )
• GlobalID ( type: esriFieldTypeGlobalID, alias: GlobalID, length: 38 )
• Shape.STLength() ( type: esriFieldTypeDouble, alias: Shape.STLength() )

Types:

ID: 1
Name: Symbol
Domains:
• Mark_Type:
  Inherited
• Material:
  Inherited
• Color:
  Inherited
• Needs_Review:
  Inherited
• Func_Class:
  Inherited
• Maint_Prgrm:
  Inherited
• Signalized_Intersection:
  Coded Values: [No: No] , [Yes: Yes]

---

ID: 2
Name: Long Line
Domains:
• Mark_Type:
  Inherited
• Material:
  Inherited
• Color:
  Inherited
• Needs_Review:
  Inherited
• Func_Class:
  Inherited
• Maint_Prgrm:
  Inherited
• Signalized_Intersection:
  Coded Values: [No: No] , [Yes: Yes]

---

ID: 4
Name: Bar or Crosswalk
Domains:
• Mark_Type:
  Inherited
• Material:
  Inherited
• Color:
  Inherited
• Needs_Review:
  Inherited
• Func_Class:
  Inherited
• Maint_Prgrm:
  Inherited
• Signalized_Intersection:
  Coded Values: [No: No] , [Yes: Yes]

---

ID: 3
Name: Parking Lot
Domains:
• Mark_Type:
  Inherited
• Material:
  Inherited
• Color:
  Inherited
• Needs_Review:
  Inherited
• Func_Class:
  Inherited
• Maint_Prgrm:
  Inherited
• Signalized_Intersection:
  Coded Values: [No: No] , [Yes: Yes]

---

ID: 5
Name: On Street Parking
Domains:
• Mark_Type:
  Inherited
• Material:
  Inherited
• Color:
  Inherited
• Needs_Review:
  Inherited
• Func_Class:
  Inherited
• Maint_Prgrm:
  Inherited
• Signalized_Intersection:
  Coded Values: [No: No] , [Yes: Yes]

---

Supported Operations:   Query   Query Attachments   Generate Renderer   Return Updates

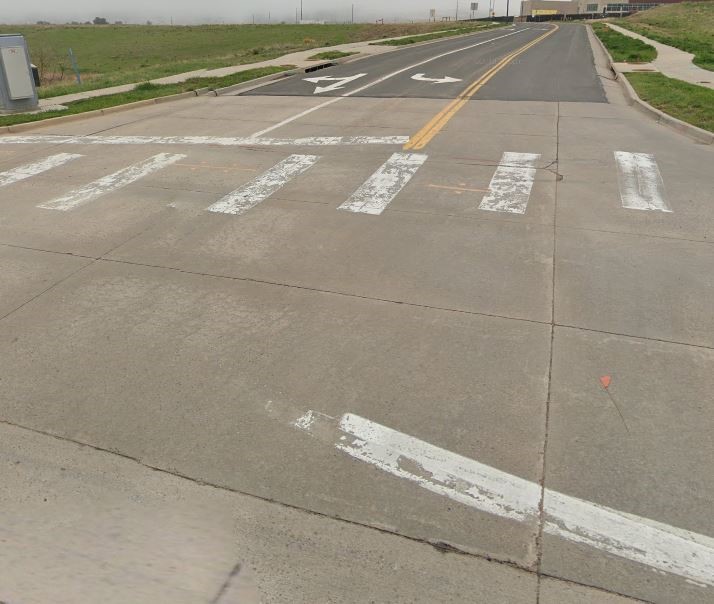

  Iteminfo   Thumbnail   Metadata
